Countax Powered Grass Collectors
Year | Spare Part | Part Number | |
Westwood / Countax C, T & S Series Tractors | |||
After 2000 | Grass Collector Body | 30100005 | |
After 2000 | Grass Collector Net Assy | 40100003 * | |
After 2000 | Grass Collector Body Plus | 30100021 | |
After 2000 | Grass Collector Net Assy Plus | 40100021 ** | |
Westwood / Countax A,D,K &V Series Tractors | |||
After 2000 | Grass Collector Body | 30100004 | |
After 2000 | Grass Collector Net Assy | 40100002 | |
Countax C Series Tractors | |||
Before 2000 | PGC Link Linkage System Kit | AP001A | |
Before 2000 | Grass Collector Body | 30100005 | |
Before 2000 | Grass Collector Net Assy | 40100003 * | |
Before 2000 | Grass Collector Body Plus | 30100021 | |
Before 2000 | Grass Collector Net Assy Plus | 40100021 ** | |
Westwood Tractors before 2000 | |||
Before 2000 | Powered Grass Collector Assembly is obsolete |
** Note: Net Assy Plus - part number: 40100021 will not fit the existing Grass Collector Body - part number: 30100005

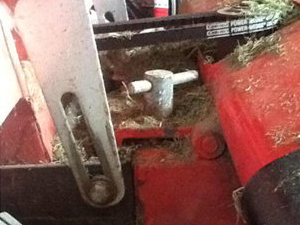

Position of the Silver Arms
Silver Arms on the Outside
If your silver arms are showing on the outside of your Powered Grass Collector connector as in the image, the part number below will fit your tractor.Part Number: 30100021 After the Year 2003
The measurment between the two arms should be approximately 39cm.
Your old net assembly will not fit this new grass collector, if you require the net this will need to be purchased.
Silver Arms on the Inside
If your silver arms are showing on the inside you will need to purchase all of the following itemsPGC Body
The PGC Net Assembly
PGC Link Linkage System Kit (Adaptor kit) - Part No: AP001A
Obsolete Models
If your existing Powered Grass Colletor fits on like this one in the photo to the left, there is NO replacement available.If you have a Westwood tractor built before the year 2000, the powered grass collector assembly is obsolete.
